產品與技術
>
空氣浴塵室

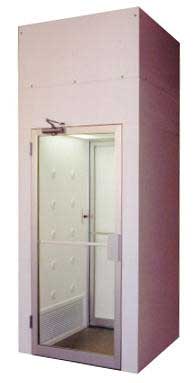

Prefabricated modular Air Shower enclosure used for removing surface
particles from personnel prior to entering a contamination controlled
environment. Air Showers are constructed as per FED Std. 209E and Air
Force Tech order 00-25-203.
The completely safe contained unit is equipped with air filtration
system, blowers, motors, controls, solid state programmable
microprocessor, interlocking doors, lighting and prewired electrical
panel.
Available in the following materials -
- 100% aluminum Clean Room panel construction
stainless steel
bonded to a variety of substrates
plastic laminate
bonded to wood.
|
![](Air-Showers.jpg) |
Standard
Air Shower Sizes
Model N0. |
DL4848 |
DL4860 |
DL4872 |
DL4896
|
DL48120 |
W x D x H |
4'0"x4'0"x9'10"
|
4'0"x5'0"x9'10"
|
4'0"x6'0"x9'10"
|
4'0"x8'0"x9'10"
|
4'0"x10'0"x9'10"
|
Interior Dim.
|
3'0"x4'0"x7'0"
|
3'0"x5'0"x7'0"
|
3'0"x6'0"x7'0"
|
3'0"x8'0"x7'0"
|
3'0"x10'0"x7'0"
|
Doors (size)
|
2 (3'0"x7'0")
|
2 (3'0"x7'0")
|
2 (3'0"x7'0")
|
2 (3'0"x7'0")
|
2 (3'0"x7'0")
|
Nozzles
|
24 |
36 |
36 |
72 |
72 |
Nozzle Velocity
|
8000 FPM
|
8000 FPM
|
8000 FPM
|
8000 FPM
|
8000 FPM
|
Nozzle
Blower
|
(1) 3 HP
|
(1) 5 HP
|
(1) 5 HP |
(2) 5 HP
|
(2) 5 HP
|
CFM
|
800 CFM
|
1500 CFM
|
1500 CFM
|
3000 CFM
|
3000 CFM
|
Constant
Purge
|
Optional
Extra
|
Optional
Extra
|
Optional
Extra
|
Optional
Extra
|
Optional Extra |
PLC |
Included
|
Included
|
Included
|
Included
|
Included
|
Sequence Type
|
Smartcycle© |
Smartcycle© |
Smartcycle© |
Smartcycle© |
Smartcycle© |
Electrical
Req.
|
15A |
20A |
20A |
30A |
30A |
Weight
|
1500# |
2000# |
2500# |
3000# |
4000# |
|
